High Temperature Superconductors
Our department has an experimental research effort in the area of
low-temperature physics, with emphasis on the study of the transport and
magnetic behaviors of the high temperature

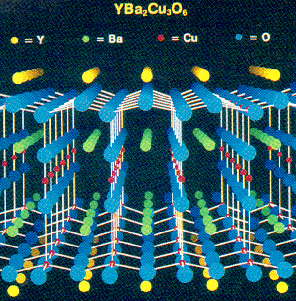

superconductors. The picture at the right [from A. Sleight, Science
242 1519 (1988)] shows the structure of a typical such
material.
The high temperature superconductors represent a new class of materials
which bear extraordinary superconducting and magnetic properties and great
potential for wide-ranging technological applications. The importance of
understanding the transport and magnetic behaviors of these novel materials
is two-fold. First, it could lead to a better understanding of the basic
phenomena of superconductivity in these materials. Second, it could
provide ways to improve the magnetic quality of the presently known
materials by enhancing flux pinning in a controllable manner.

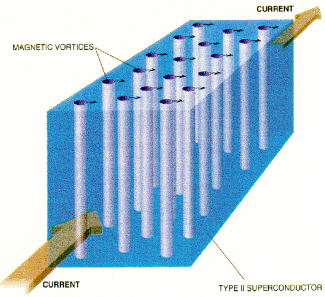

A current-carrying type II
superconductor in the
mixed state
 |
When a current
is applied to a type II superconductor (blue rectangular box) in the mixed state,
the magnetic vortices (blue cylinders) feel a force (Lorentz force) that pushes
the vortices at right angles to the current flow. This movement dissipates energy
and produces resistance [from D. J. Bishop et al., Scientific American, 48 (Feb.
1993)]. |
When a type II superconductor is placed in a magnetic field Hc1
< H < Hc2, where Hc1 and Hc2 are the lower
and upper critical fields, respectively, the magnetic vortices that
penetrate the material should form a uniform triangular lattice (Abrikosov
vortex lattice) with a lattice spacing determined by the strength of H.
If H is increased, the vortices become more closely spaced and
their cores start to overlap. At Hc2 the vortex lattice and the
pairing of the electrons disappear and the material becomes normal.
However, within the family of high-temperature superconductors, the
vortices have been found to be capable of forming a number of exotic new
phases of matter besides the triangular lattice. The weak pinning of the
flux lines of high-temperature superconductors gives rise to energy
dissipation in these materials at finite currents, which limits the maximum
value of the critical current (the current required to destroy
superconductivity) and, hence, a variety of applications of the
high-temperature superconductors. Knowing how the vortices move and
arrange themselves under various temperature and magnetic-field conditions,
as well as how these phenomena are influenced by the physical properties of
the material, will be critical in controlling the flux motion and
maintaining the supercurrent flow in these materials.
Our research is conducted on several systems of copper-oxide
superconductors, some of which exhibit superconductivity at temperatures as
high as about 130 K, well above the boiling point of liquid nitrogen (77
K). Measurements such as magnetic susceptibility, magnetoresistance, Hall
effect, and current-voltage characteristics over a wide range of
temperatures, applied magnetic fields, and/or applied pressures are used to
probe the physics of these materials. These experiments are carried out on
two major pieces of equipment: (1) a low temperature platform suitable for
transport measurements which consists of a 4He cryostat with pumping
station and temperature controller for measurements from room temperature
to 1.8 K, a 9 tesla magnet, and the required computer-interfaced
electronics; (2) a SQUID (superconducting quantum interference device)
magnetometer which incorporates all the hardware and software needed for
precise magnetic measurements from room temperature to 1.8 K and magnetic
fields up to 5 tesla.
